Cabrinha 2023 H-series MKII Front Wing
  • SKU: K3FWHFWNG-550
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Cabrinha 2023 H-series MKII Front Wing

$929.00 $1,095.00

    2023 H-Series MKII Front Wing
    HIGH ASPECT FOIL

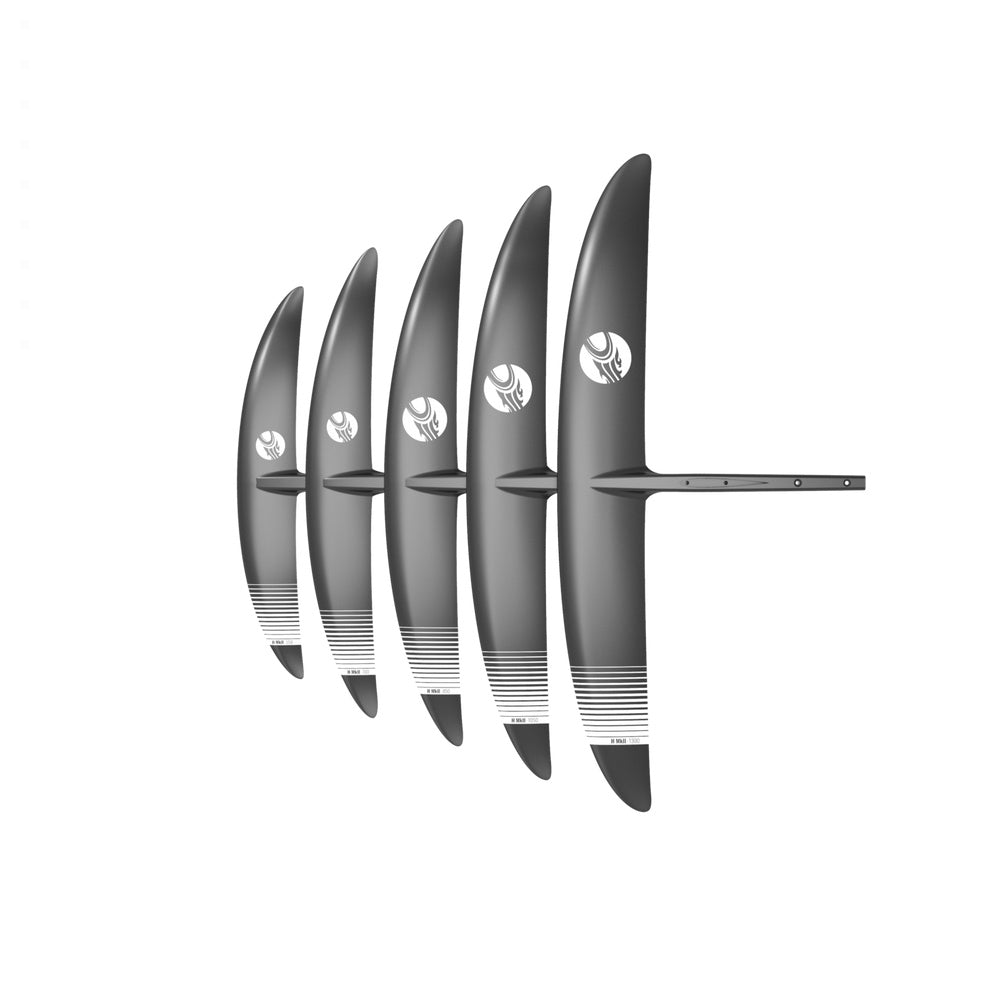

    Sizes: H550 / H700 / H850 / H1050 / H1300

    Just when you thought a product couldn’t get better, the new H-Series MkII pushes into the future of foil design and sets a new benchmark for efficiency and performance.  The design team have implemented new technology learnt from the collaboration with Sintef.  Water testing in the biggest tank in Europe has refined the H-series tip shape to allow the tips to breach and re-enter without cavitation.  This allows more progressive riding and radical turns, be it with a kite, wing or prone.  The new leaner profile now boasts an increased speed range which helps entry into freestyle tricks or on the race field.  It seamlessly pairs with any of Cabrinha’s V-series stabs and is part of the modular Cab Fusion system.


    Design Profile:
    High aspect ratio, swept outline, Ultra lean efficient profile, moderate anhedral with
    flared tips

    Features:

    • Ultra Efficient Design
    • Ultra Lean Profile
    • Refined Tip Shape.
    • Tapered Fit
    • Increased Torsional Stiffness
    • High Apect Ratio
    • Barrel Nut Secure Connection
    • Pre Preg Carbon Construction
    • Modular Design to work with Cab Fusion Products

    Specifications:



    H550- 550cm², WS 690, AR 9.52, Chord 110mm
    H700- 700cm², WS 815, AR 9.49, Chord 120mm
    H850- 850cm², WS 900, AR 9.53 Chord 130mm
    H1050- 1050cm², WS 1000, AR 9.52, Chord 140mm
    H1300 - 1300c m ², WS 1090, AR 9.14, Chord 150mm

    Foil Guide

    Set includes:
    Wing cover, 2 x m6x30mm, 1 x m6x15mm, m6 barrel nut, screws.
